980/1550 WDM PM Miniaturized Single Mode Fiber Optic Patch Cord 2*2 Coupler FC/APC Connectors

Name: 9801550 WDM PM Miniaturized Single Mode Fiber Optic Patch Cord 22 Coupler FCAPC Connectors
Brand: Blueto
Price: 1 USD

Brand Name : Blueto

Model Number : PM 2*2 coupler FC/APC SM

Certification : ROHS

Place of Origin : China

MOQ : 1pc

Price : Negotiation

Payment Terms : T/T, Western Union,Paypal

Supply Ability : 1000pcs/week

Delivery Time : 5-8working days

Packaging Details : Neutral packing

PM fiber : Panda fiber

Fiber count : duplex

Type : APC

Wavelength : 980/1550

Contact Now

980/1550 Fiber Optic WDM,PM miniaturized singlemode fiber optic 2*2 coupler FC/APC Connectors

WDM component overview:
Filter WDM component is based on proven thin-film technology, just same as CWDM device. And it can be used in CATV module and other optical system.
IH is a company professional in passive optical components manufacture, we are committed to provide the excellent products to customers.

Features:

Wide pass band
Low insertion loss
Low PDL
High isolation
High stability and reliability

Applications:

CWDM module
CATV
FTTH
Security & Protection System
Fiber Amplifer
Fiber optic Instrument

Parameter:

Type Parameter	980/1550
Insertion loss (Signal) (dB)	≤0.8	≤0.8
PMD (ps)	≤0.05	≤0.05
Pass Band wavelength range (nm)	980	1550
Reflection Band wavelength range (nm)	1550	980
Insertion loss (Pump) (dB)	≤0.6	≤0.6
Transmitted Isolation (Pump) (dB)	≥30	≥30
Reflected Isolation (Signal) (dB)	≥15	≥15
ER(dB)	>20
WDL (dB)	≤0.3
Directivity (dB)	≥55
Return loss (dB)	≥50
Thermal stability (dB/ ℃)	≤0.005
Power handling (mW)	≤500
Fiber Type:	PM 1550 fiber
Operating temperature (℃)	0 ~ +70
Storage temperature (℃)	-40 ~ +85

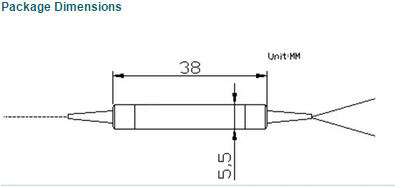

Package dimension (mm)	5.5 × L35(P1)

Above specifications are for devices without connector.

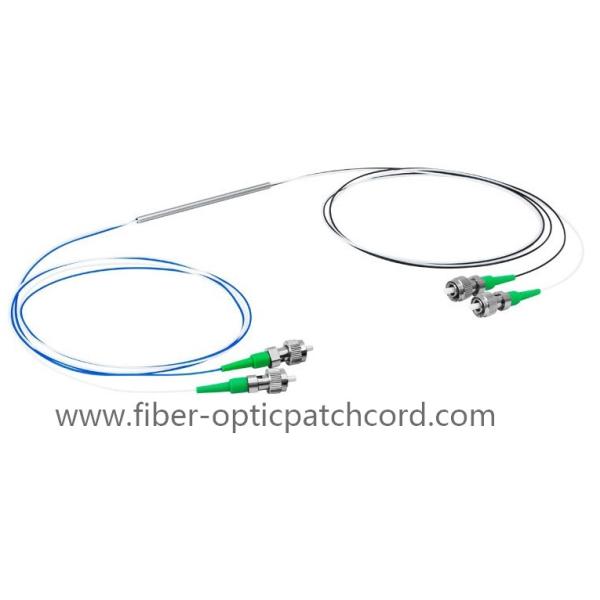

980/1550 WDM PM Miniaturized Single Mode Fiber Optic Patch Cord 2*2 Coupler FC/APC Connectors

980/1550 WDM PM Miniaturized Single Mode Fiber Optic Patch Cord 2*2 Coupler FC/APC Connectors
